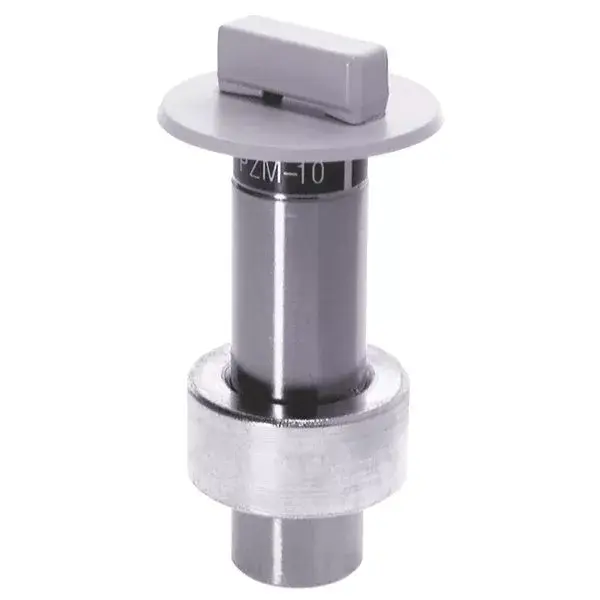

The CROWN PZM®-10, part of the Pressure Zone Microphone®line, is designed for security, surveillance, and conference-table use. Because it does not look like a microphone, it is inconspicuous. It easily mounts into tables, walls or ceilings.

Like other Pressure Zone Microphones®, the CROWN PZM®-10 uses a miniature mic capsule mounted close to a sound-reflecting plate or boundary, in the pressure zone. In this zone, direct sound from the sound source combines in phase at all frequencies with reflected sound off the boundary. The benefits are many: 6 dB more sensitivity, 6 dB less noise, a wide smooth frequency response free of phase interference, excellent clarity and “reach”, and consistent pickup anywhere around the mic. The CROWN PZM®-10 will pick up conversations or other desired sounds with extra clarity and definition.

Polar pattern: Hemispherical

Frequency range: PZM®-10: 80 to 20,000 Hz

Sensitivity: PZM®-10: 2.5 mV/Pa (-52 dBV)

Max. SPL: 120 dB

Equivalent noise level: 26 dB-A

Signal/noise ratio: 68 dB (A-weighted)

Impedance: PZM®-10: 240 ohms

Connector: PZM®-10: 3-pin XLR

Finish Off-white. May be painted any color.

Dimensions: ø 3.9 cm x 7.2 cm (ø 1.53 x 2.829 in.)

Net weight: PZM®-10: 74 g (22,6 oz.)
