Give your headphones the power and clarity they deserve.
Whether you’re tracking, mixing, or just listening to music, your headphone amplifier is as important to the final sound quality as your headphones – yet the world is full of headphone amps with compromised sonics, headroom, and power. To address these shortcomings, Rupert and his team at Rupert Neve Designs developed the RNHP.

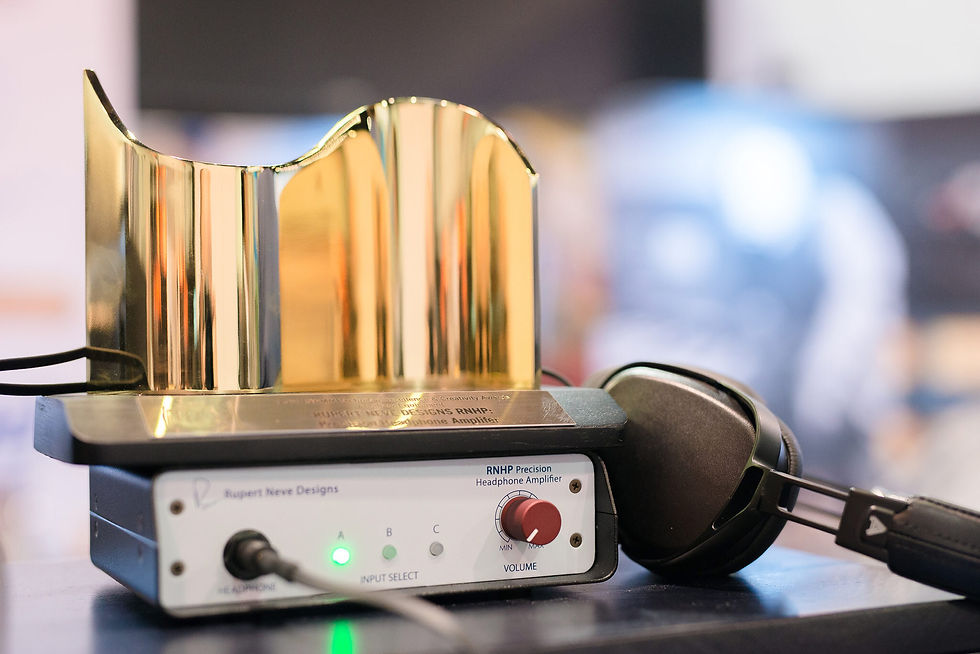

Based on the headphone output circuit in the 5060 Centerpiece Desktop Mixer, the RNHP is a dedicated 24V reference-quality headphone amplifier with +4dBu balanced line, unbalanced RCA and 3.5mm (1/8”) inputs – each specifically calibrated for optimum level and impedance – and housed in a rugged, VESA-mountable steel chassis.

SPECIFICATIONS

MAXIMUM INPUT LEVELS
“A” XLR I/P: +22.8 dBu @ 1 kHz
“B” RCA I/P: +14.7 dBu @ 1 kHz,
“C” 3.5mm I/P: +3.3 dBu @ 1 kHz
OUTPUT POWER
As measured with typical headphones, Z=44 Ohm: 3.617 VAC RMS @ 1 kHz = 300mW RMS.
16 Ohm typical Load: 1.933 VAC RMS @ 1 kHz = 230mW RMS
150 Ohm typical Load: 5.108 VAC RMS @ 1 kHz = 175mW RMS
OUTPUT IMPEDANCE
.08 Ohm @ 1 kHz, 16-150 Ohm load, 0 dBu input
FREQUENCY RESPONSE
+/- .2 dB from 10 Hz to 120 kHz
NOISE
Measured with typical headphones, Z = 44 Ohm, BW 22 Hz - 22 kHz.
“A” XLR Input: -101.9 dBV,
“B” RCA Input: -100.9 dBV
“C” 3.5mm Input: -88.8 dBV
DIMENSIONS
6.5” wide x 4.6” deep and 1.9” tall
POWER SUPPLY REQUIREMENTS
24VDC @ 0.25Amp (6 watt) minimum. Use with supplied power adapter, as this has been carefully selected for best output power and noise performance. May be used with a properly configured 24V battery as well.
